FSB50325AS, FSB50325A - Motion SPM 5 Series

Name: FSB50325AS
SKU: FSB50325AS-924220

Fairchild Semiconductor

📥 Download Datasheet

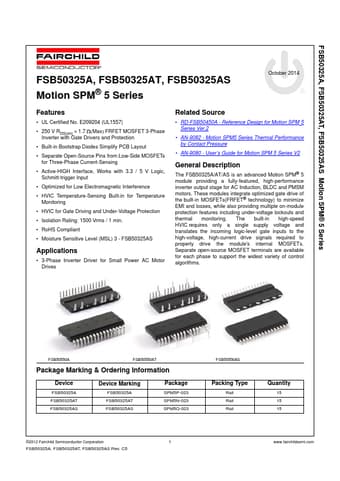

FSB50325AS Datasheet Preview — This datasheet PDF includes multiple part numbers: FSB50325AS, FSB50325A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FSB50325AS, FSB50325A
Manufacturer	Fairchild Semiconductor
File Size	1.04 MB
Description	Motion SPM 5 Series
Datasheet	FSB50325A-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FSB50325AS, FSB50325A. Please refer to the document for exact specifications by model.

FSB50325AS Product details

Description

The FSB50325A/AT/AS is an advanced Motion SPM® 5 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors.

Features

UL Certified No. E209204 (UL1557).
250 V RDS(on) = 1.7 Max FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection.
Built-in Bootstrap Diodes Simplify PCB Layout.
Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing.
Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input.
Optimized for Low Electromagnetic Interference.
HVIC Temperature-Sensing Built-in for Temperature Monitoring.
