FSA2269 - Low-Voltage Dual-SPDT (0.4ohm) Analog Switch

Fairchild Semiconductor

📥 Download Datasheet

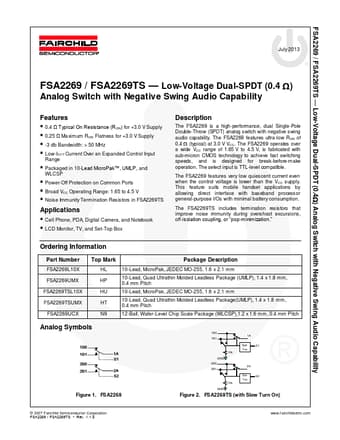

FSA2269 Datasheet Preview — Preview of FSA2269 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FSA2269
Manufacturer	Fairchild Semiconductor
File Size	964.35 KB
Description	Low-Voltage Dual-SPDT (0.4ohm) Analog Switch
Datasheet	FSA2269_FairchildSemiconductor.pdf

FSA2269 Product details

Description

The FSA2269 is a high-performance, dual Single-Pole Double-Throw (SPDT) analog switch with negative swing audio capability.

Features

0.4 Ω Typical On Resistance (RON) for +3.0 V Supply.
0.25 Ω Ma ximum RON Flatness for +3.0 V Supply.
-3 db Bandwidth: > 50 MHz.
Low-ICCT Current Over an Expanded Control Input Range.
Packaged in 10-Lead MicroPak™, UMLP, and WLCSP.
Power-Off Protection on Common Ports.
Broad VCC Operating Range: 1.65 to 4.5 V.
Noise Immunity Termination Resistors in FSA2269TS.
