FQD1N60C - 600V N-Channel MOSFET

Description

This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor®’s proprietary planar stripe and DMOS technology.

Features

  • 1 A, 600 V, RDS(on) = 11.5 Ω (Max. ) @ VGS = 10 V, ID = 0.5 A.
  • Low Gate Charge (Typ. 4.8 nC).
  • Low Crss (Typ. 3.5 pF).
  • 100% Avalanche Tested.
  • RoHS Compliant D G S D-PAK G D S I-PAK G! D !.
  • ◀▲.
  • ! S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Parameter Drain-Source Voltage Drain Current Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) - Pulse.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

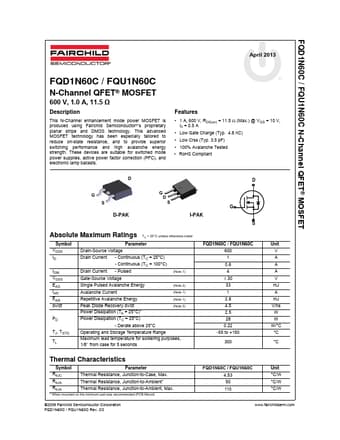

FQD1N60C / FQU1N60C N-Channel QFET® MOSFET April 2013 FQD1N60C / FQU1N60C N-Channel QFET® MOSFET 600 V, 1.0 A, 11.5 Ω Description This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor®’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts. Features • 1 A, 600 V, RDS(on) = 11.5 Ω (Max.) @ VGS = 10 V, ID = 0.5 A • Low Gate Charge (Typ. 4.8 nC) • Low Crss (Typ. 3.
