FQB33N10L - N-Channel MOSFET

Description

This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology.

Features

  • 33 A, 100 V, RDS(on) = 52 mΩ (Max) @VGS = 10 V, ID = 16.5 A.
  • Low Gate Charge (Typ. 30 nC).
  • Low Crss (Typ. 70 pF).
  • 100% Avalanche Tested.
  • 175°C Maximum Junction Temperature Rating D D GS D2-PAK G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Parameter Drain-Source Voltage Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) Drain Current - Pulsed (Note 1) G.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FQB34N20 N-Channel MOSFET ON Semiconductor
FQB020ADC-007-M EMC Filters TDK-Lambda
FQB020ADC-007-S EMC Filters TDK-Lambda
FQB020ADC-N07-M EMC Filters TDK-Lambda
FQB020ADC-N07-S EMC Filters TDK-Lambda

Other Datasheets by Fairchild (onsemi)

Part Number Description
FQB33N10 100V N-Channel MOSFET
FQB30N06 60V N-Channel MOSFET
FQB30N06L 60V LOGIC N-Channel MOSFET
FQB34N20 200V N-Channel MOSFET
FQB34N20L 200V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

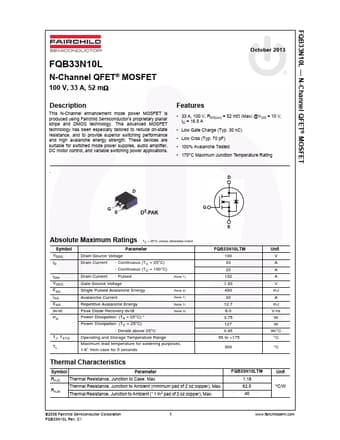

FQB33N10L — N-Channel QFET® MOSFET FQB33N10L N-Channel QFET® MOSFET 100 V, 33 A, 52 mΩ October 2013 Description This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, audio amplifier, DC motor control, and variable switching power applications. Features • 33 A, 100 V, RDS(on) = 52 mΩ (Max) @VGS = 10 V, ID = 16.5 A • Low Gate Charge (Typ. 30 nC) • Low Crss (Typ.
