FQB25N33TM_F085 - 330V N-Channel MOSFET

Fairchild Semiconductor

The FQB25N33TM_F085 by Fairchild Semiconductor is a 330V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

FQB25N33TM_F085 330V N-Channel MOSFET by Fairchild Semiconductor - Datasheet Preview — Official preview page of the FQB25N33TM_F085 330V N-Channel MOSFET datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FQB25N33TM_F085
Manufacturer	Fairchild Semiconductor
File Size	1.10 MB
Description	330V N-Channel MOSFET
Datasheet	FQB25N33TM_F085-FairchildSemiconductor.pdf

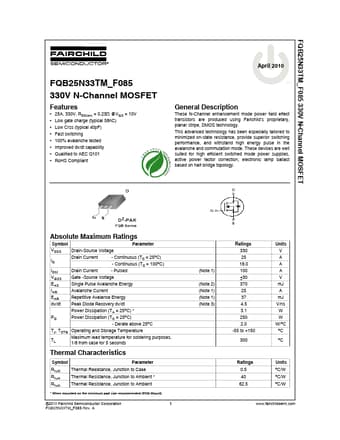

Additional preview pages of the FQB25N33TM_F085 datasheet.

FQB25N33TM_F085 Product details

Description

These N-Channel enhancement mode power field effect transistors are produced using Farichild’s proprietary, planar stripe, DMOS technology.

Features

25A, 330V, RDS(on) = 0.23Ω @VGS = 10V.
Low gate charge (typical 58nC).
Low Crss (typical 40pF).
Fast switching.
100% avalanche tested.
Improved dv/dt capability.
Qualified to AEC Q101.
RoHS Compliant April 2010 tm General.
