FOD0721, FOD0720 - 25Mbit/sec Logic Gate Optocoupler

Fairchild Semiconductor

The FOD0721 by Fairchild Semiconductor is a 25Mbit/sec Logic Gate Optocoupler. Below is the official datasheet preview.

📥 Download Datasheet

FOD0721 25Mbit/sec Logic Gate Optocoupler by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FOD0721** 25Mbit/sec Logic Gate Optocoupler datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FOD0721, FOD0720
Manufacturer	Fairchild Semiconductor
File Size	642.91 KB
Description	25Mbit/sec Logic Gate Optocoupler
Datasheet	FOD0720_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FOD0721, FOD0720. Please refer to the document for exact specifications by model.

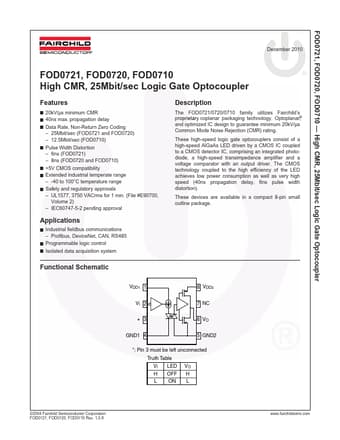

Additional preview pages of the FOD0721 datasheet.

FOD0721 Product details

Description

The FOD0721/0720/0710 family utilizes Fairchild’s proprietary coplanar packaging technology, Optoplanar®, and optimized IC design to guarantee minimum 20kV/µs Common Mode Noise Rejection (CMR) rating.

Features

20kV/µs minimum CMR.
40ns max. propagation delay.
Data Rate, Non-Return Zero Coding.
25Mbit/sec (FOD0721 and FOD0720).
12.5Mbit/sec (FOD0710).
Pulse Width Distortion.
6ns (FOD0721).
8ns (FOD0720 and FOD0710).
+5V CMOS compatibility.
Extended industrial temperate range.
-40 to 100°C temperature range.
Safety and regulatory approvals.
UL1577, 3750 VACrms for 1 min. (File #E90700, Volume 2).
IEC60747-.
