FNA41560B2 - Smart Power Module

Fairchild Semiconductor

The FNA41560B2 by Fairchild Semiconductor is a Smart Power Module. Below is the official datasheet preview.

📥 Download Datasheet

FNA41560B2 Smart Power Module by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FNA41560B2** Smart Power Module datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FNA41560B2
Manufacturer	Fairchild Semiconductor
File Size	929.84 KB
Description	Smart Power Module
Datasheet	FNA41560B2-FairchildSemiconductor.pdf

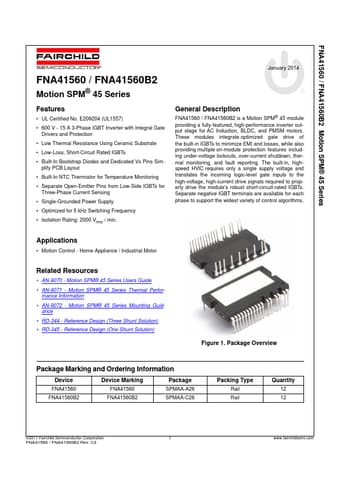

Additional preview pages of the FNA41560B2 datasheet.

FNA41560B2 Product details

Description

FNA41560 / FNA41560B2 is a Motion SPM® 45 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors.

Features

UL Certified No. E209204 (UL1557).
600 V - 15 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection.
Low Thermal Resistance Using Ceramic Substrate.
Low-Loss, Short-Circuit Rated IGBTs.
Built-In Bootstrap Diodes and Dedicated Vs Pins Sim- plify PCB Layout.
Built-In NTC Thermistor for Temperature Monitoring.
Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing.
Single-Grounded Power Supp.
