FMBL1G200US60 - Molding Type Module

Description

Fairchild’s Insulated Gate Bipolar Transistor (IGBT) power modules provide low conduction and switching losses as well as short circuit ruggedness.

Features

  • UL Certified No. E209204 Short circuit rated 10us @ TC = 100°C, VGE = 15V High speed switching Low saturation voltage : VCE(sat) = 2.2 V @ IC = 200A High input impedance Fast & soft anti-parallel FWD Package Code : 7PM-BB E1/C2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FMB-22H Schottky Barrier Diodes 20V Sanken electric
FMB-22L Schottky Barrier Diodes 20V Sanken electric
FMB-2306 Schottky Diode Sanken electric
FMB-24 Silicon Schottky Barrier Diode Sanken electric
FMB-24H Silicon Schottky Barrier Diode Sanken electric

Other Datasheets by Fairchild (onsemi)

Part Number Description
FMBL1G300US60 Molding Type Module
FMB100 NPN Multi-Chip General Purpose Amplifier
FMB1020 NPN & PNP Complementary Dual Transistor SuperSOT-6 Surface Mount Package
FMB200 PNP Multi-Chip General Purpose Amplifier
FMB2222A NPN Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

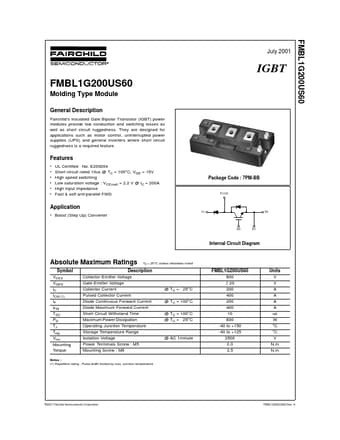

FMBL1G200US60 July 2001 IGBT FMBL1G200US60 Molding Type Module General Description Fairchild’s Insulated Gate Bipolar Transistor (IGBT) power modules provide low conduction and switching losses as well as short circuit ruggedness. They are designed for applications such as motor control, uninterrupted power supplies (UPS) and general inverters where short circuit ruggedness is a required feature. Features • • • • • • UL Certified No. E209204 Short circuit rated 10us @ TC = 100°C, VGE = 15V High speed switching Low saturation voltage : VCE(sat) = 2.
