FLV101 - Red GaAsP LED Lamps

Download the FLV101 datasheet PDF. This datasheet also covers the FLV100 variant, as both devices belong to the same red gaasp led lamps family and are provided as variant models within a single manufacturer datasheet.

Description

The FLV100, FLV101 and FLV102 are red lightemitting diodes encapsulated in plastic.

Each light source is contained in a black case, giving excellent contrast when on, yet appearing black when off.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FLV100-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
FLV110 SECOND SOURCE T-1 3/4 SOLID STATE LAMPS QT Optoelectronics

Other Datasheets by Fairchild (onsemi)

Part Number Description
FLV100 Red GaAsP LED Lamps
FLV102 Red GaAsP LED Lamps
FLV104 Narrow Beam GaAsP Lamps
FLV104A Narrow Beam GaAsP Lamps
FLV110 SOLID STATE LAMPS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

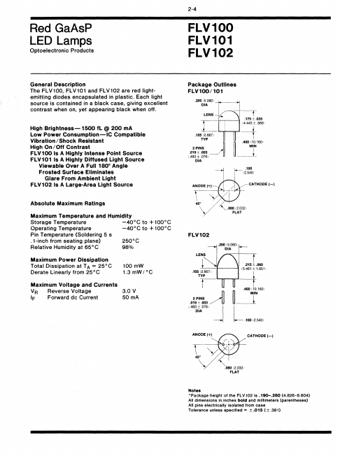

Red GaAsP LED Lamps Optoelectronic Products 2-4 FLV100 FLV101 FLV102 General Description The FLV100, FLV101 and FLV102 are red lightemitting diodes encapsulated in plastic. Each light source is contained in a black case, giving excellent contrast when on, yet appearing black when off. High Brightness-1500 fL @ 200 mA Low Power Consumption-IC Compatible Vibration/Shock Resistant High On/Off Contrast FLV100 Is A Highly Intense Point Source FLV101 Is A Highly Diffused Light Source Viewable Over A Full 180" Angle Frosted Surface Eliminates Glare From Ambient Light FLV102 Is A Large-Area Light Source Absolute Maximum Ratings Maximum Temperature and Humidity Storage Temperature -40°C to +100°C Operating Temperature -40°C to + 100°C Pin Temperature (Soldering 5 s .
