FLD00030 - Analog Ambient Light Sensor

General Description

The FLD00030 is a small, low profile photo detector.

It incorporates a phototransistor detector chip which makes it an ideal choice for low cost ambient light measurement applications like mobile appliances backlighting.

Cell Phones, Notebook PCs, PDAs, Digital Still Cameras Pa

Key Features

  • Spectral response close to human eye.
  • Good output linearity across wide illumination range.
  • Small footprint: 1.7mm x 0.8mm.
  • Low profile: 0.6mm.
  • Phototransistor with filter technology.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FLD12-030 Constant Current LED Driver FranMar
FLD12-035 Constant Current LED Driver FranMar
FLD12-050 Constant Current LED Driver FranMar
FLD12-060 Constant Current LED Driver FranMar
FLD222NC2NG LED Modules Dialight

Other Datasheets by Fairchild (onsemi)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

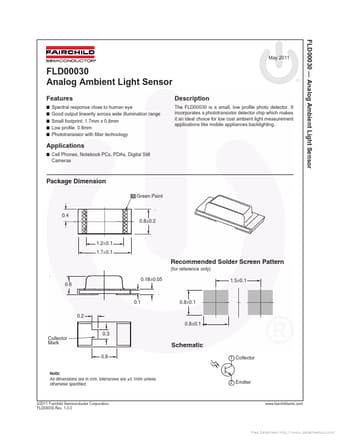

FLD00030 — Analog Ambient Light Sensor May 2011 FLD00030 Analog Ambient Light Sensor Features ■ Spectral response close to human eye ■ Good output linearity across wide illumination range ■ Small footprint: 1.7mm x 0.8mm ■ Low profile: 0.6mm ■ Phototransistor with filter technology Description The FLD00030 is a small, low profile photo detector. It incorporates a phototransistor detector chip which makes it an ideal choice for low cost ambient light measurement applications like mobile appliances backlighting. Applications ■ Cell Phones, Notebook PCs, PDAs, Digital Still Cameras Package Dimension Green Paint 0.4 0.8±0.2 1.2±0.1 1.7±0.1 Recommended Solder Screen Pattern (for reference only) 0.6 0.18±0.05 1.5±0.1 0.1 0.2 0.8±0.1 0.8±0.1 Collector Mark 0.3 Schematic 0.
