FIN1017 - 3.3V LVDS 1-Bit High Speed Differential Driver

Download the FIN1017 datasheet PDF. This datasheet also covers the FIN variant, as both devices belong to the same 3.3v lvds 1-bit high speed differential driver family and are provided as variant models within a single manufacturer datasheet.

Description

This single driver is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology.

Features

  • s Greater than 600Mbs data rate s 3.3V power supply operation s 0.5ns maximum differential pulse skew s 1.5ns maximum propagation delay s Low power dissipation s Power-Off protection s Meets or exceeds the TIA/EIA-644 LVDS standard s Flow-through pinout simplifies PCB layout s 8-Lead SOIC and US8 packages save space Ordering Code: Order Number FIN1017M FIN1017MX FIN1017K8X Package Number M08A M08A MAB08A Package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FIN-1017.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
FIN1019 3.3V LVDS High Speed Differential Driver/Receiver ON Semiconductor
FIN1001 High-Speed Differential Driver ON Semiconductor
FIN1002 High-Speed Differential Reciever ON Semiconductor
FinePix S5100 Manual Fujifilm
FinePix S5500 Manual Fujifilm

Other Datasheets by Fairchild (onsemi)

Part Number Description
FIN1018 3.3V LVDS 1-Bit High Speed Differential Receiver
FIN1019 3.3V LVDS High Speed Differential Driver/Receiver
FIN1001 3.3V LVDS 1-Bit High Speed Differential Driver
FIN1002 LVDS 1-Bit High Speed Differential Receiver
FIN1022 2 X 2 LVDS High Speed Crosspoint Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

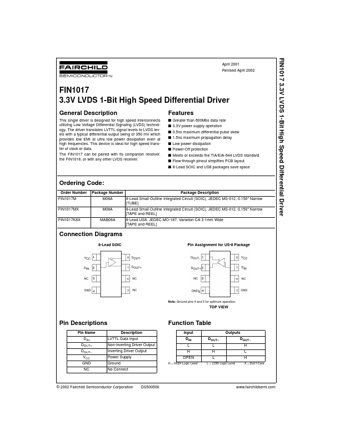

FIN1017 3.3V LVDS 1-Bit High Speed Differential Driver April 2001 Revised April 2002 FIN1017 3.3V LVDS 1-Bit High Speed Differential Driver General Description This single driver is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The driver translates LVTTL signal levels to LVDS levels with a typical differential output swing of 350 mV which provides low EMI at ultra low power dissipation even at high frequencies. This device is ideal for high speed transfer of clock or data. The FIN1017 can be paired with its companion receiver, the FIN1018, or with any other LVDS receiver. Features s Greater than 600Mbs data rate s 3.3V power supply operation s 0.5ns maximum differential pulse skew s 1.
