FGH40N60UFD - Field Stop IGBT

Fairchild Semiconductor

📥 Download Datasheet

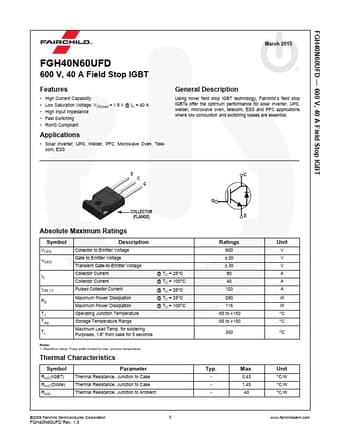

FGH40N60UFD Datasheet Preview — Preview of FGH40N60UFD PDF

Datasheet Details

Part number	FGH40N60UFD
Manufacturer	Fairchild Semiconductor
File Size	667.52 KB
Description	Field Stop IGBT
Datasheet	FGH40N60UFD_FairchildSemiconductor.pdf

FGH40N60UFD Product details

Description

Using novel field stop IGBT technology, Fairchild’s field stop IGBTs offer the optimum performance for solar inverter, UPS, welder, microwave oven, telecom, ESS and PFC applications where low conduction and switching losses are essential.

Features

High Current Capability.
Low Saturation Voltage: VCE(sat) = 1.8 V @ IC = 40 A.
High Input Impedance.
Fast Switching.
RoHS Compliant.
