FDP030N06B_F102 - MOSFET

Fairchild Semiconductor

📥 Download Datasheet

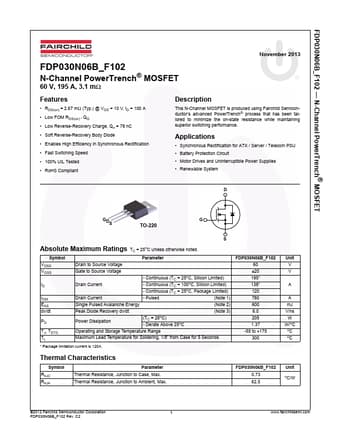

FDP030N06B_F102 Datasheet Preview — Preview of FDP030N06B_F102 PDF

Datasheet Details

Part number	FDP030N06B_F102
Manufacturer	Fairchild Semiconductor
File Size	646.51 KB
Description	MOSFET
Datasheet	FDP030N06B_F102-FairchildSemiconductor.pdf

FDP030N06B_F102 Product details

Description

This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance. Synchronous Rectification for ATX / Server / Telecom PSU Battery Protection Circuit Motor Drives and Uninterruptible Power Supplies Renewable System D GDS TO-220 G S Absolute Maximum Ratings TC = 25oC unless otherwise noted.Symbol VDSS

Features

RDS(on) = 2.67 mΩ (Typ. ) @ VGS = 10 V, ID = 100 A.
Low FOM RDS(on).
QG.
Low Reverse-Recovery Charge, Qrr = 78 nC.
Soft Reverse-Recovery Body Diode.
Enables High Efficiency in Synchronous Rectification.
Fast Switching Speed.
100% UIL Tested.
RoHS Compliant.
