FCD5N60 600V N-Channel MOSFET

Fairchild Semiconductor

Description

FCD5N60 / FCU5N60 * N-Channel SuperFET® MOSFET August 2014 FCD5N60 / FCU5N60 N-Channel SuperFET® MOSFET 600 V, 4.6 A, 950 mΩ .
SuperFET® MOSFET is Fairchild Semiconductor’s first generation of high voltage super-junction (SJ) MOSFET family that is utilizing charge balance tech.

📥 Download Datasheet

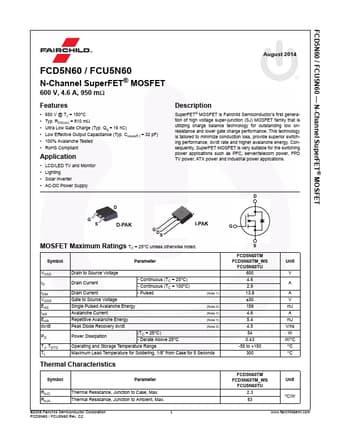

FCD5N60 Datasheet Preview — Preview of FCD5N60 PDF

Datasheet Specifications

Part number: FCD5N60
Manufacturer: Fairchild Semiconductor
File Size: 337.01 KB
Datasheet: FCD5N60_FairchildSemiconductor.pdf
Description: 600V N-Channel MOSFET

Features

* 650 V @ TJ = 150°C
* Typ. RDS(on) = 810 mΩ
* Ultra Low Gate Charge (Typ. Qg = 16 nC)
* Low Effective Output Capacitance (Typ. Coss(eff. ) = 32 pF)
* 100% Avalanche Tested

Applications

* such as PFC, server/telecom power, FPD TV power, ATX power and industrial power applications. D G S D-PAK GDS I-PAK MOSFET Maximum Ratings TC = 25oC unless otherwise noted. Symbol Parameter VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Drain to Source Voltage Drain Current Drain Current
