FAN6793 - Dual-PWM Combination Controller

Download the FAN6793 datasheet PDF. This datasheet also covers the FAN6791 variant, as both devices belong to the same dual-pwm combination controller family and are provided as variant models within a single manufacturer datasheet.

Description

The highly integrated FAN6791/3 dual PWM combination controller provides several

Features

  • High-Voltage Startup.
  • Low Operating Current.
  • Interleaved Stand-by PWM / Forward PWM Switching.
  • Green Mode Stand-by PWM / Forward PWM.
  • Linearly Decreasing Stand-by PWM Frequency to 20kHz.
  • Remote On / Off.
  • AC Brownout Protection.
  • Forward PWM with Soft-Start.
  • Frequency Hopping to Reduce EMI Emissions.
  • Cycle-by-Cycle Current Limiting for Stand-by PWM / Forward PWM.
  • Leading-Edge Blanking for Stand-by PWM / Forward PWM.
  • Synchronized Slope Co.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FAN6791_FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
FAN604H Offline Quasi-Resonant PWM Controller ON Semiconductor
FAN604P Offline Quasi-Resonant PWM Controller ON Semiconductor
FAN6080HMX Offline Quasi-Resonant PWM Controller ON Semiconductor
FAN6204A Synchronous Rectification Controller ON Semiconductor
FAN6241M6X Secondary Side Synchronous Rectifier Controller ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
FAN6791 Dual-PWM Combination Controller
FAN6747 Highly Integrated Green-Mode PWM Controller
FAN6751 Highly Integrated Green-Mode PWM Controller
FAN6753 Highly Integrated Green-Mode PWM Controller
FAN6754 Highly Integrated Green-Mode PWM Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

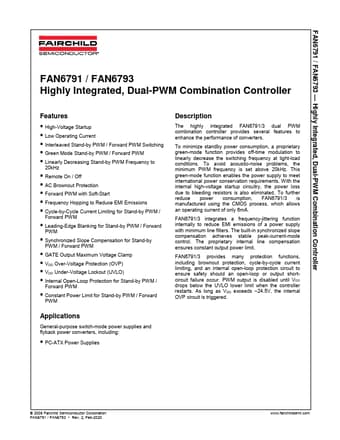

FAN6791 / FAN6793 — Highly Integrated, Dual-PWM Combination Controller FAN6791 / FAN6793 Highly Integrated, Dual-PWM Combination Controller Features ƒ High-Voltage Startup ƒ Low Operating Current ƒ Interleaved Stand-by PWM / Forward PWM Switching ƒ Green Mode Stand-by PWM / Forward PWM ƒ Linearly Decreasing Stand-by PWM Frequency to 20kHz ƒ Remote On / Off ƒ AC Brownout Protection ƒ Forward PWM with Soft-Start ƒ Frequency Hopping to Reduce EMI Emissions ƒ Cycle-by-Cycle Current Limiting for Stand-by PWM / Forward PWM ƒ Leading-Edge Blanking for Stand-by PWM / Forward PWM ƒ Synchronized Slope Compensation for Stand-by PWM / Forward PWM ƒ GATE Output Maximum Voltage Clamp ƒ VDD Over-Voltage Protection (OVP) ƒ VDD Under-Voltage Lockout (UVLO) ƒ Internal Open-Loop Protection for Stand-by PWM
