FAN53418 Synchronous DC-DC MOSFET Driver

FAN53418 Description

www.fairchildsemi.com FAN53418 Synchronous DC-DC MOSFET Driver .
The FAN53418 is a high frequency, dual MOSFET driver specifically designed to drive two power N-Channel MOSFETs in a synchronous rectified buck converte.

FAN53418 Features

* Drives N-channel High-Side and Low-Side MOSFETs in a synchronous buck configuration
* Internal Adaptive “Shoot-Through” Protection
* High Switching Frequency (> 500kHz)
* 30ns Output Rise/Fall Times w/3000pF load
* 20ns Propagation Delay
* 12V High-Si

FAN53418 Applications

* Multi-phase VRM/VRD regulators for Microprocessor Power
* High Current/High Frequency DC/DC Converters
* High Power Modular Power Supplies Basic Application +12V C BST D1 Q1 1 BST DRVH 8 L1 2 IN FAN54318 3 OD PGND 6 Q2 4 C VCC VCC DRVL 5 SW 7 C VIN Figure 1. Basic Applic

📥 Download Datasheet

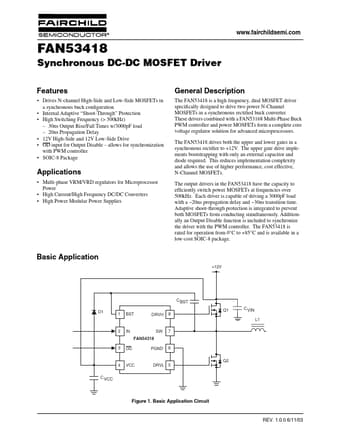

Preview of FAN53418 PDF
