FAN23SV10MAMPX - 10A Synchronous Buck Regulator

Datasheet Summary

Description

The FAN23SV10MA is a highly efficient synchronous buck regulator.

The regulator is capable of operating with an input range from 7 V to 18 V and supporting up to 10 A load currents.

Features

  • VIN Range: 7 V to 18 V Using Internal Linear Regulator for Bias.
  • VIN Range: 4.5 V to 5.5 V with VIN/PVIN/PVCC Connected to Bypass Internal Regulator.
  • High Efficiency: Over 96% Peak.
  • Continuous Output Current: 10 A.
  • Internal Linear Bias Regulator.
  • Accurate Enable facilitates VIN UVLO Functionality.
  • PFM Mode for Light-Load Efficiency.
  • Excellent Line and Load Transient Response.
  • Precision Reference: ±1% Over Temperature.
  • Output Voltage Range: 0.6 t.

📥 Download Datasheet

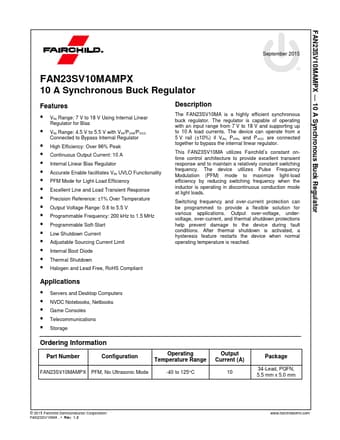

Datasheet preview – FAN23SV10MAMPX
