FAN23SV06PAMPX - 6A Synchronous Buck Regulator

This page provides the datasheet information for the FAN23SV06PAMPX, a member of the FAN23SV06AMPX 6A Synchronous Buck Regulator family.

Datasheet Summary

Description

The FAN23SV06A/FAN23SV06PA is a highly efficient synchronous buck regulator.

The regulator is capable of operating with an input range from 7 V to 18 V and supporting 6 A continuous load currents.

Features

  • VIN Range: 7 V to 18 V Using Internal Linear Regulator for Bias.
  • VIN Range: 4.5 V to 5.5 V with VIN/PVIN/PVCC Connected to Bypass Internal Regulator.
  • High Efficiency: Over 96% Peak.
  • Continuous Output Current: 6 A.
  • Accurate Enable Facilitates VIN UVLO Functionality.
  • PFM Mode for Light-Load Efficiency.
  • Forced PWM Mode Option (FAN23SV06PA).
  • Excellent Line and Load Transient Response.
  • Precision Reference: ±1% Over Temperature.
  • Output Voltage Range:.

📥 Download Datasheet

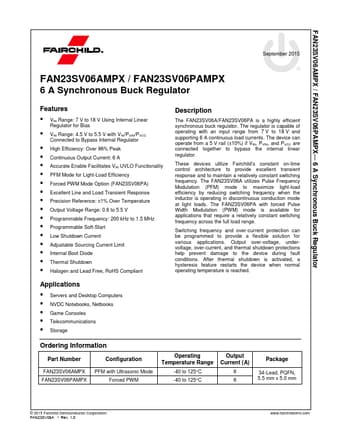

Datasheet preview – FAN23SV06PAMPX

Datasheet Details

Part number FAN23SV06PAMPX
Manufacturer Fairchild Semiconductor
File Size 1.80 MB
Description 6A Synchronous Buck Regulator
Datasheet download datasheet FAN23SV06PAMPX Datasheet
Additional preview pages of the FAN23SV06PAMPX datasheet.
