FAH4840 - Haptic Driver

General Description

The FAH4840 is a high-performance amplifier for mobile phones and other hand-held devices.

The haptic driver takes a single-ended PWM input signal to control a Linear Resonant Actuator (LRA).

Key Features

  • Direct Drive of LRA (Linear Resonant Actuator) External PWM Input (10 kHz to 250 kHz) with Divider Internal Motor Enable / Disable Input Auto Resonant Tracking LDO Provides Stable Haptic Effect with Battery Depletion Low Shutdown Current: < 5 nA Fast Wake-Up Time Nearly Rail-to-Rail Output Swing Thermal Shutdown, Over-Current Shutdown Register-Based Control by I C Immersion TouchSense® 3000 Certified Package: 8- Lead MicroPa.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Fairchild (onsemi)

Part Number Description
FAH4820 Direct Driver
FAH4830 Haptic Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

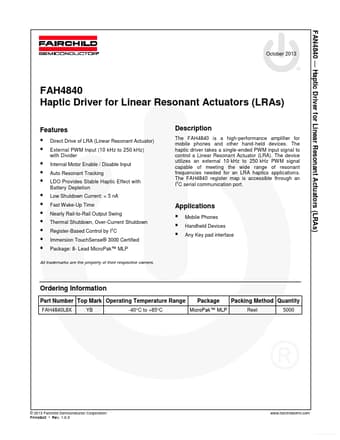

FAN4840 — Haptic Driver for Linear Resonant Actuators (LRAs) October 2013 FAH4840 Haptic Driver for Linear Resonant Actuators (LRAs) Features             Direct Drive of LRA (Linear Resonant Actuator) External PWM Input (10 kHz to 250 kHz) with Divider Internal Motor Enable / Disable Input Auto Resonant Tracking LDO Provides Stable Haptic Effect with Battery Depletion Low Shutdown Current: < 5 nA Fast Wake-Up Time Nearly Rail-to-Rail Output Swing Thermal Shutdown, Over-Current Shutdown Register-Based Control by I C Immersion TouchSense® 3000 Certified Package: 8- Lead MicroPak™ MLP 2 Description The FAH4840 is a high-performance amplifier for mobile phones and other hand-held devices.
