DM74LS161A - Synchronous 4-Bit Binary Counters

Product Overview

Fairchild Semiconductor

Part number	DM74LS161A
Manufacturer	Fairchild Semiconductor
File Size	103.03 KB
Description	Synchronous 4-Bit Binary Counters
Datasheet	DM74LS161A Datasheet

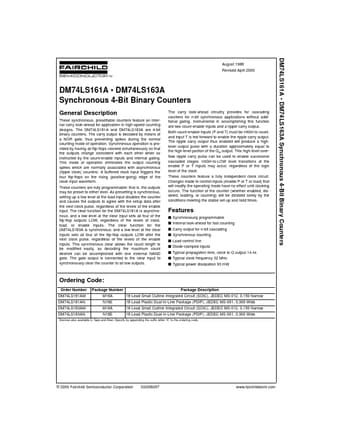

Additional preview pages of the DM74LS161A datasheet.

These synchronous, presettable counters feature an internal carry look-ahead for application in high-speed counting designs.

s Synchronously programmable s Internal look-ahead for fast counting s Carry output for n-bit cascading s Synchronous counting s Load control line s Diode-clamped inputs s Typical propagation time, clock to Q output 14 ns s Typical clock frequency 32 MHz s Typical power dissipation 93 mW Ordering Code: Order Number DM74LS161AM DM74LS161AN DM74LS163AM DM74LS163AN Package Number M16A N16E M16A N16E Package.
