DM74AS08 - Quad 2-Input AND Gate

Product Overview

Fairchild Semiconductor

Part number	DM74AS08
Manufacturer	Fairchild Semiconductor
File Size	46.32 KB
Description	Quad 2-Input AND Gate
Datasheet	DM74AS08 Datasheet

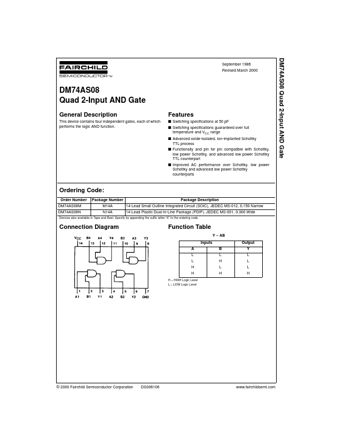

Additional preview pages of the DM74AS08 datasheet.

This device contains four independent gates, each of which performs the logic AND function.

s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally and pin for pin compatible with Schottky, low power Schottky, and advanced low power Schottky TTL counterpart s Improved AC performance over Schottky, low power Schottky and advanced low power Schottky counterparts Ordering Code: Order Number DM74AS08M DM74AS08N Package Number M14A N14A Package.
