DM74ALS21A - Dual 4-Input AND Gate

Product Overview

Fairchild Semiconductor

Part number	DM74ALS21A
Manufacturer	Fairchild Semiconductor
File Size	46.13 KB
Description	Dual 4-Input AND Gate
Datasheet	DM74ALS21A Datasheet

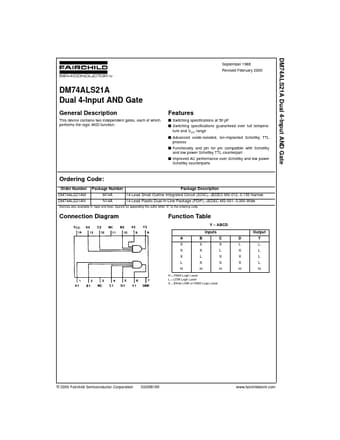

Additional preview pages of the DM74ALS21A datasheet.

This device contains two independent gates, each of which performs the logic AND function.

s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart s Improved AC performance over Schottky and low power Schottky counterparts Ordering Code: Order Number DM74ALS21AM DM74ALS21AN Package Number M14A N14A Package.
