DM74ALS1004 - Hex Inverting Driver

Fairchild Semiconductor

Datasheet Details

Part number	DM74ALS1004
Manufacturer	Fairchild Semiconductor
File Size	46.29 KB
Description	Hex Inverting Driver
Datasheet	DM74ALS1004_FairchildSemiconductor.pdf

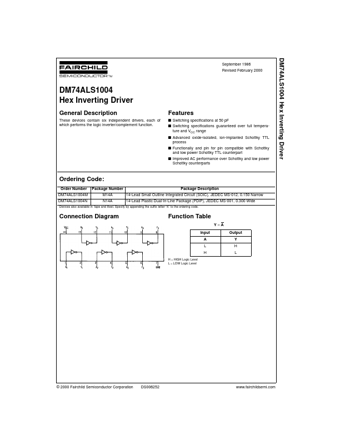

These devices contain six independent drivers, each of which performs the logic inverter/complement function.

s Switching specifications at 50 pF s Switching specifications guaranteed over full temperature and VCC range s Advanced oxide-isolated, ion-implanted Schottky TTL process s Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart s Improved AC performance over Schottky and low power Schottky counterparts Ordering Code: Order Number DM74ALS1004M DM74ALS1004N Package Number M14A N14A Package.
