BDW93C Datasheet - Fairchild Semiconductor

BDW93C_FairchildSemiconductor.pdf

Preview of BDW93C PDF

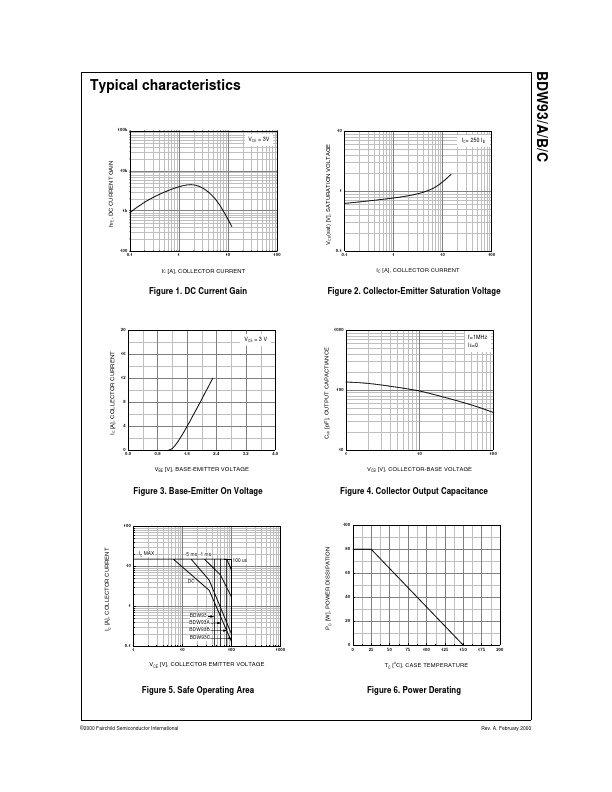

BDW93C Datasheet Preview Page 2 BDW93C Datasheet Preview Page 3

Datasheet Details

Part number:

BDW93C

Manufacturer:

Fairchild Semiconductor

File Size:

39.86 KB

Description:

Npn transistor.

BDW93C, NPN Transistor

BDW93/A/B/C BDW93/A/B/C Hammer Drivers, Audio Amplifiers Applications Power Darlington TR Complement to BDW94, BDW94A, BDW94B and BDW94C respectively 1 TO-220 2.Collector 3.Emitter 1.Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO Parameter Collector-Base Voltage : BDW93 : BDW93A : BDW93B : BDW93C VCEO Collector-Emitter Voltage : BDW93 : BDW93A : BDW93B : BDW93C Collector Current (DC) Collector Current (Pulse)
