74ALVC16601 - Low Voltage 18-Bit Universal Bus Transceivers

Fairchild Semiconductor

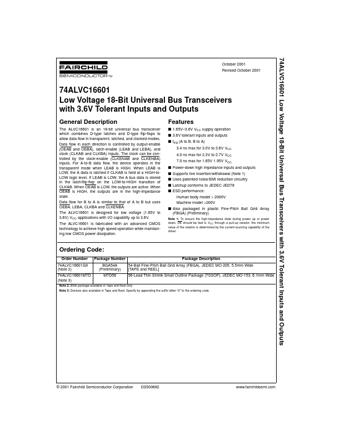

The 74ALVC16601 by Fairchild Semiconductor is a Low Voltage 18-Bit Universal Bus Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

74ALVC16601 Low Voltage 18-Bit Universal Bus Transceivers by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **74ALVC16601** Low Voltage 18-Bit Universal Bus Transceivers datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	74ALVC16601
Manufacturer	Fairchild Semiconductor
File Size	100.99 KB
Description	Low Voltage 18-Bit Universal Bus Transceivers
Datasheet	74ALVC16601_FairchildSemiconductor.pdf
Additional preview pages of the 74ALVC16601 datasheet.

74ALVC16601 Product details

Description

The ALVC16601 is an 18-bit universal bus transceiver which combines D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes.

Features

s 1.65V.
3.6V VCC supply operation s 3.6V tolerant inputs and outputs s tPD (A to B, B to A) 3.4 ns max for 3.0V to 3.6V VCC 4.0 ns max for 2.3V to 2.7V VCC 7.0 ns max for 1.65V 1.95V VCC s Power-down high impedance inputs and outputs s Supports live insertion/withdrawal (Note 1) s Uses patented noise/EMI reduction circuitry s Latchup conforms to JEDEC JED78 s ESD performance: Human body model > 2000V Machine model >200V s Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Prelim.
