74283 4-Bit Binary Adder

74283 Description

DM74LS283 4-Bit Binary Adder with Fast Carry August 1986 Revised March 2000 DM74LS283 4-Bit Binary Adder with Fast Carry General .
These full adders perform the addition of two 4-bit binary numbers.

74283 Features

* s Full-carry look-ahead across the four bits s Systems achieve partial look-ahead performance with the economy of ripple carry s Typical add times Two 8-bit words 25 ns Two 16-bit words 45 ns s Typical power dissipation per 4-bit adder 95 mW Ordering Code: Order Number DM74LS283M DM74LS283N Package

📥 Download Datasheet

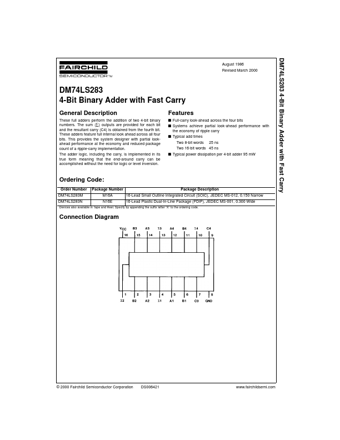

Preview of 74283 PDF
