6N136M, 6N135M - Single-Channel High Speed Transistor Optocouplers

Fairchild Semiconductor

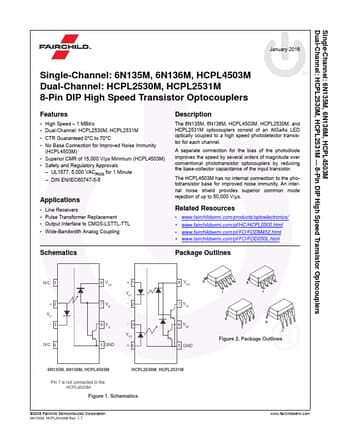

6N136M Datasheet Preview — This datasheet PDF includes multiple part numbers: 6N136M, 6N135M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	6N136M, 6N135M
Manufacturer	Fairchild ↗ Semiconductor
File Size	616.00 KB
Description	Single-Channel High Speed Transistor Optocouplers
Datasheet	6N135M-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 6N136M, 6N135M. Please refer to the document for exact specifications by model.

6N136M Product details

Description

The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel.

Features

High Speed.
1 MBit/s.
Dual-Channel: HCPL2530M, HCPL2531M.
CTR Guaranteed 0°C to 70°C.
No Base Connection for Improved Noise Immunity (HCPL4503M).
Superior CMR of 15,000 V/μs Minimum (HCPL4503M).
Safety and Regulatory Approvals.
UL1577, 5,000 VACRMS for 1 Minute.
DIN EN/IEC60747-5-5.
