2SC3503 - NPN Epitaxial Silicon Transistor

Features

  • High Voltage : VCEO= 300V Low Reverse Transfer Capacitance : Cre= 1.8pF at VCB = 30V Excellent Gain Linearity for low THD High Frequency: 150MHz Full thermal and electrical Spice models are available Complement to 2SA1381/KSA1381. 1 TO-126 2.Collector 3.Base 1. Emitter Absolute Maximum Ratings.
  • Symbol BVCBO BVCEO BVEBO IC ICP PC TJ, TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current(DC) C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC3503 PNP/NPN Transistors Sanyo Semicon Device
2SC3500 Silicon Power Transistor ETC
2SC3501 Silicon Power Transistor ETC
2SC3502 PNP/NPN Transistors Sanyo Semicon Device
2SC3502 Silicon NPN transistor BLUE ROCKET ELECTRONICS

Other Datasheets by Fairchild (onsemi)

Part Number Description
2SC33725 NPN Epitaxial Silicon Transistor
2SC5200 NPN Epitaxial Silicon Transistor
2SC5242 NPN Epitaxial Silicon Transistor

Full PDF Text Transcription

Click to expand full text

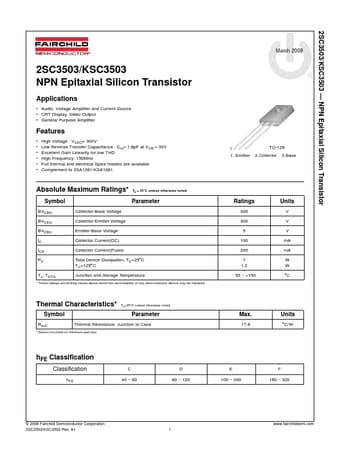

2SC3503/KSC3503 — NPN Epitaxial Silicon Transistor March 2008 2SC3503/KSC3503 NPN Epitaxial Silicon Transistor Applications • Audio, Voltage Amplifier and Current Source • CRT Display, Video Output • General Purpose Amplifier Features • • • • • • High Voltage : VCEO= 300V Low Reverse Transfer Capacitance : Cre= 1.8pF at VCB = 30V Excellent Gain Linearity for low THD High Frequency: 150MHz Full thermal and electrical Spice models are available Complement to 2SA1381/KSA1381. 1 TO-126 2.Collector 3.Base 1. Emitter Absolute Maximum Ratings* Symbol BVCBO BVCEO BVEBO IC ICP PC TJ, TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current(DC) Collector Current(Pulse) Ta = 25°C unless otherwise noted Parameter Ratings 300 300 5 100 200 7 1.
