1N6007B - Zener Diodes

Download the 1N6007B datasheet PDF. This datasheet also covers the 1N5985B variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5985B-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N6007B SILICON ZENER DIODES Central Semiconductor
1N6007B 500 mW Zener Diode MCC
1N6007BUR-1 Surface Mount 500mW Zener Diodes Microsemi
1N6007 Axial-Leaded 500 mW Zener Diodes Microsemi
1N6007 500mW Zener Diode MCC

Other Datasheets by Fairchild (onsemi)

Part Number Description
1N6000B Zener Diodes
1N6001B Zener Diodes
1N6002B Zener Diodes
1N6003B Zener Diodes
1N6004B Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

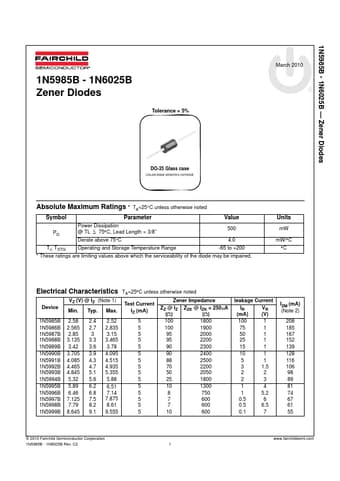

1N5985B - 1N6025B — Zener Diodes 1N5985B - 1N6025B Zener Diodes Tolerance = 5% March 2010 DO-35 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings * TA=25°C unless otherwise noted Symbol Parameter Value Power Dissipation PD @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C 500 4.0 TJ, TSTG Operating and Storage Temperature Range -65 to +200 * These ratings are limiting values above which the serviceability of the diode may be impaired. Units mW mW/°C °C Electrical Characteristics TA=25°C unless otherwise noted Device VZ (V) @ IZ (Note 1) Min. Typ. Max. Zener Impedance Test Current IZ (mA) ZZ @ IZ ZZK @ IZK = 250μA (Ω) (Ω) 1N5985B 2.58 2.4 2.52 1N5986B 2.565 2.7 2.835 5 5 100 100 1800 1900 1N5987B 2.85 3 3.15 1N5988B 3.135 3.3 3.
