CCD134 - 1024 Element Linear Image Sensor

Name: CCD134
SKU: CCD134-553076

📥 Download Datasheet

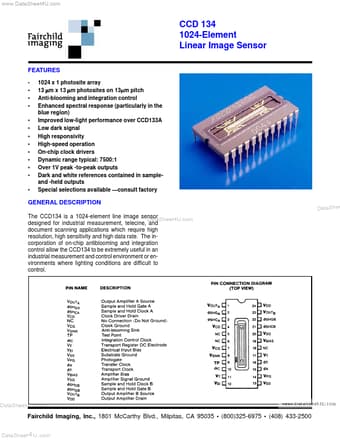

CCD134 Datasheet Preview — Preview of CCD134 PDF

Datasheet Details

Part number	CCD134
Manufacturer	Fairchild Imaging
File Size	609.31 KB
Description	1024 Element Linear Image Sensor
Datasheet	CCD134_FairchildImaging.pdf

CCD134 Product details

Description

The CCD134 is a 1024-element line image sensor DataSheet4U.com designed for industrial measurement, telecine, and document scanning applications which require high resolution, high sensitivity and high data rate.

Features

1024 x 1 photosite array 13 µm x 13 µm photosites on 13µm pitch Anti-blooming and integration control Enhanced spectral response (particularly in the blue region) Improved low-light performance over CCD133A Low dark signal High responsivity High-speed operation On-chip clock drivers Dynamic range typical: 7500:1 Over 1V peak -to-peak outputs Dark and white reference.
