VNC2-32Q, VNC2-64L Dual USB Host Controller IC

FTDI

Description

Datasheet Vinculum-II Embedded Dual USB Host Controller IC Version 1.8 Document No.: FT_000138 Clearance No.: FTDI# 143 Future Technology Devices Inte.
of each function please refer to Section 4.

📥 Download Datasheet

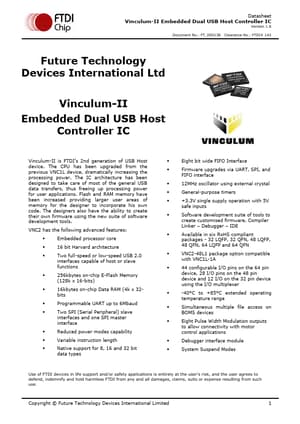

VNC2-32Q Datasheet Preview — This datasheet PDF includes multiple part numbers: VNC2-32Q, VNC2-64L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VNC2-32Q, VNC2-64L
Manufacturer: FTDI
File Size: 2.56 MB
Datasheet: VNC2-64L-FTDI.pdf
Description: Dual USB Host Controller IC
Note: This datasheet PDF includes multiple part numbers: VNC2-32Q, VNC2-64L.
Please refer to the document for exact specifications by model.

Features

* Embedded processor core
* 16 bit Harvard architecture
* Two full-speed or low-speed USB 2.0 interfaces capable of host or slave functions
* 256kbytes on-chip E-Flash Memory (128k x 16-bits)
* 16kbytes on-chip Data RAM (4k x 32bits
* Programmable UART up to 6Mbaud
* Two
