PQ2016 - POWER TRANSFORMER MODULES

PQ2016 Description

http://www.fpe.com.cn PQ2016 SERIES POWER TRANSFORMER MODULES PRODUCT OVERVIEW:THT POWER THANSFORMERS Characteristics Applications High insulatio.

PQ2016 Applications

* High insulation type High efficiency Lighting White Goods IEC60950 Compatible CMC Telecom Operating temperature range:-40℃to +85℃ industrial Controls DC/DC Converter Bobbin Winding Area Width(mm) Build(mm) Perimeter(mm) 7.9 3.12 34.5 CORE DATA Ae(mm^2) 62 Ve(mm^3) 2318.3 Le(mm) 37.4

📥 Download Datasheet

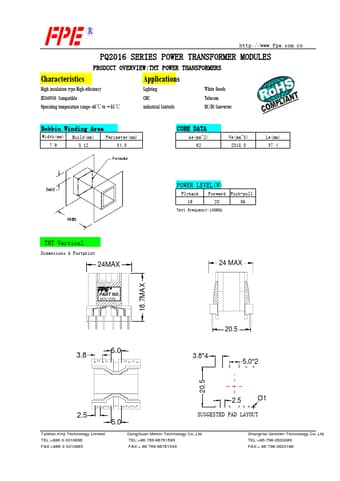

Preview of PQ2016 PDF

Datasheet Details

Part number
PQ2016
Manufacturer
FPE
File Size
123.44 KB
Datasheet
PQ2016-FPE.pdf
Description
POWER TRANSFORMER MODULES
