QH11123-FP1-4F - DVI Connector

Download the QH11123-FP1-4F datasheet PDF (QH11121-FP0-4F included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dvi connector.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (QH11121-FP0-4F-FOXCONN.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number QH11123-FP1-4F
Manufacturer FOXCONN
File Size 265.17 KB
Description DVI Connector
Datasheet download datasheet QH11123-FP1-4F Datasheet

📁 Similar Datasheet

Other Datasheets by FOXCONN

Full PDF Text Transcription

Click to expand full text

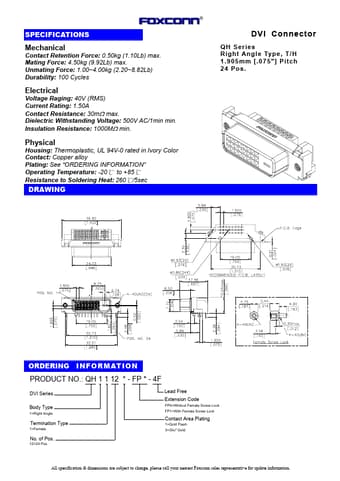

SPECIFICATIONS Mechanical Contact Retention Force: 0.50kg (1.10Lb) max. Mating Force: 4.50kg (9.92Lb) max. Unmating Force: 1.00~4.00kg (2.20~8.82Lb) Durability: 100 Cycles Electrical Voltage Raging: 40V (RMS) Current Rating: 1.50A Contact Resistance: 30mΩ max. Dielectric Withstanding Voltage: 500V AC/1min min. Insulation Resistance: 1000MΩ min. Physical Housing: Thermoplastic, UL 94V-0 rated in Ivory Color Contact: Copper alloy Plating: See “ORDERING INFORMATION” Operating Temperature: -20℃ to +85℃ Resistance to Soldering Heat: 260℃/5sec DRAWING DVI Connector QH Series Right Angle Type, T/H 1.905mm [.075"] Pitch 24 Pos. ORDERING IN FO R MATIO N PRODUCT NO.: QH 1 1 12 * - FP * - 4F DVI Series Body Type 1=Right Angle Termination Type 1=Female No. of Pos. 12=24 Pos.
