BR3DG9014W - Silicon NPN transistor

BR3DG9014W Description

9014W(BR3DG9014W) Rev.C Feb.-2015 DATA SHEET / .
SOT-323 NPN 。Silicon NPN transistor in a SOT-323 Plastic Package.

BR3DG9014W Applications

* 、。 Low frequency, low noise pre-amplifier. / Equivalent Circuit / Pinning 3 21 PIN1：Emitter PIN 2：Base PIN 3：Collector / Marking hFE Classifications Symbol hFE Range Marking A 60～150 HJ6A B 100～300 HJ6B C 200～600 HJ6C D 400～1000 HJ6D http://www. fsbrec. com 1/6 9014W(BR3DG9014W) Rev. C F

📥 Download Datasheet

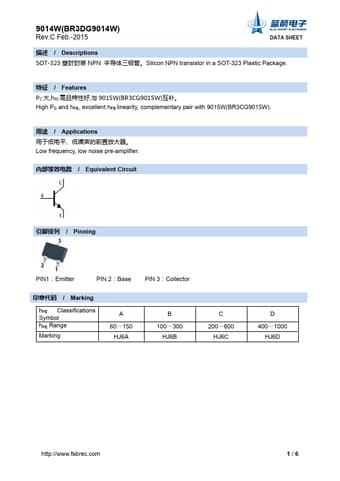

Preview of BR3DG9014W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BR3DG9014W
Manufacturer
FOSHAN BLUE ROCKET
File Size
649.99 KB
Datasheet
BR3DG9014W-FOSHANBLUEROCKET.pdf
Description
Silicon NPN transistor
