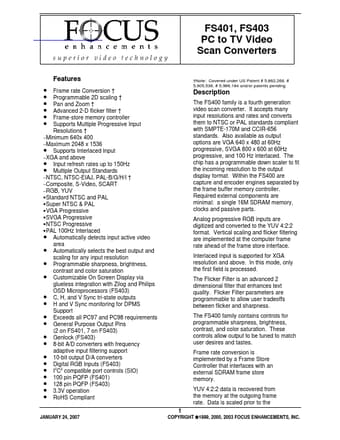

FS401, FS403 PC to TV Video Scan Converters
Features
• Frame rate Conversion † • Programmable 2D scaling † • Pan and Zoom † • Advanced 2-D flicker filter † • Frame-store memory controller • Supports Multiple Progressive Input
Resolutions † –Minimum 640x 400 –Maximum 2048 x 1536
• Supports Interlaced Input
–XGA and above
• Input refresh rates up to 150Hz • Multiple Output Standards
–NTSC, NTSC-EIAJ, PAL-B/G/H/I † –Composite, S-Video, SCART –RGB, YUV Standard NTSC and PAL Super NTSC & PAL VGA Progressive SVGA Progressive NTSC Progressive PAL 100Hz Interlaced
• Automatically detects input active video
area
• Automatically selects the best output and
scaling for any input resolution
• Programmable sharpness, brightness,
contrast and color saturation
• Customizable On Screen Display via
