FNK3400 - N-Channel Power MOSFET

Description

The FNK3400 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.This device is suitable for use as a load switch and PWM applications.

Features

  • VDS = 30V,ID = 5A RDS(ON) < 28mΩ @ VGS=10V RDS(ON) < 32mΩ @ VGS=4.5V.
  • High Power and current handing capability.
  • Lead free product is acquired.
  • Surface mount package D G S Schematic diagram.

📥 Download Datasheet

Datasheet Details

Part number FNK3400
Manufacturer FNK
File Size 935.85 KB
Description N-Channel Power MOSFET
Datasheet download datasheet FNK3400 Datasheet

📁 Similar Datasheet

Other Datasheets by FNK

Full PDF Text Transcription

Click to expand full text

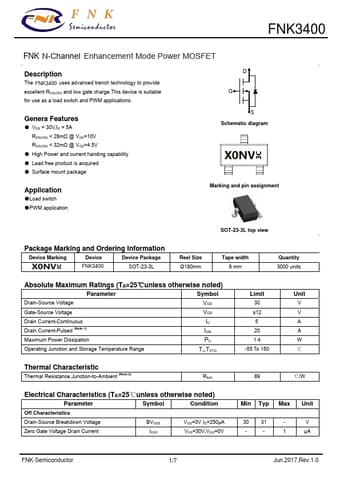

FNK3400 FNK N-Channel Enhancement Mode Power MOSFET Description The FNK3400 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.This device is suitable for use as a load switch and PWM applications. Genera Features ● VDS = 30V,ID = 5A RDS(ON) < 28mΩ @ VGS=10V RDS(ON) < 32mΩ @ VGS=4.
