FT25C64A - SPI Serial EEPROM

📥 Download Datasheet

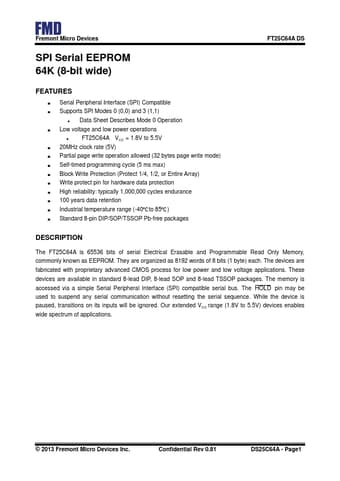

FT25C64A Datasheet Preview — Preview of FT25C64A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FT25C64A
Manufacturer	FMD
File Size	596.25 KB
Description	SPI Serial EEPROM
Datasheet	FT25C64A-FMD.pdf

FT25C64A Product details

Description

The FT25C64A is 65536 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM.

Features

Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 (0,0) and 3 (1,1).
Data Sheet Describes Mode 0 Operation.
Low voltage and low power operations.
FT25C64A VCC = 1.8V to 5.5V.
20MHz clock rate (5V).
Partial page write operation allowed (32 bytes page write mode).
Self-timed programming cycle (5 ms max).
Block Write Protection (Protect 1/4, 1/2, or Entire Array).
Write protect pin for hardware data protection.
High reliabilit.
