C3207 - NPN Silicon Transistor

📥 Download Datasheet

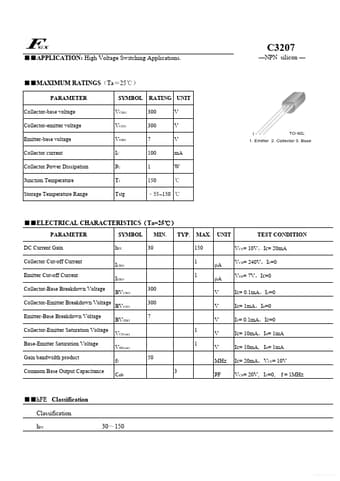

Datasheet preview – C3207

Datasheet Details

Part number C3207
Manufacturer FGX
File Size 132.39 KB
Description NPN Silicon Transistor
Datasheet download datasheet C3207 Datasheet
Additional preview pages of the C3207 datasheet.

📁 Similar Datasheet

  • C3200 - 2SC3200 (Korea Electronics)
  • C3202 - Silicon NPN Transistor (KEC)
  • C32025 - Digital Signal Processor Megafunction (Cast)
  • C3203 - 2SC3203 (Korea Electronics)
  • C3203 - NPN Transistor (SEMTECH)
  • C3205 - NPN Transistor (HOTTECH)
  • C3205 - Epitaxial Planar NPN Transistor (Kexin)
  • C3205 - NPN Transistor (SeCoS)
  • C3206 - 2SC3206 (Korea Electronics)
  • C3209 - 2SC3209 (NEC Electronics)
Other Datasheets by FGX

Full PDF Text Transcription

Click to expand full text
·ç¹âÐÀ¼¼Êõ×ÊÁÏ ■■APPLICATION: High Voltage Switching Applications. C3207 —NPN silicon — ■■MAXIMUM RATINGS（Ta＝25℃） PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector Power Dissipation Junction Temperature Storage Temperature Range SYMBOL VCBO VCEO VEBO IC PC TJ Tstg RATING UNIT 300 300 7 100 1 150 V V V mA W ℃ 1 TO-92L 1. Emitter 2. Collector 3.
