FKBA6115 P-Ch 60V Fast Switching MOSFET

FKBA6115 Description

FETek Technology Corp.* Super Low Gate Charge * 100% EAS Guaranteed * Green Device Available * Excellent CdV/dt effect decline * .
The FKBA6115 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter.

FKBA6115 Applications

* The FKBA6115 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved. PRPAK5X6 Pin Configuration Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM EAS IAS PD@TC=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continu

📥 Download Datasheet

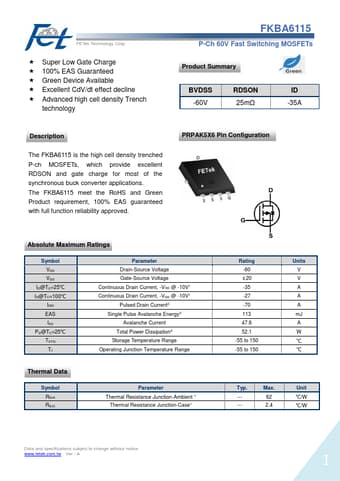

Preview of FKBA6115 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FKBA6115
Manufacturer
FETek
File Size
563.89 KB
Datasheet
FKBA6115-FETek.pdf
Description
P-Ch 60V Fast Switching MOSFET
