FM204, FM202 - 2.0A Surface Mount Schottky Rectifier

The FM204 by FEC Semiconductor is a 2.0A Surface Mount Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	FM204, FM202
Manufacturer	FEC Semiconductor
File Size	69.24 KB
Description	2.0A Surface Mount Schottky Rectifier
Datasheet	FM202-FECSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FM204, FM202. Please refer to the document for exact specifications by model.

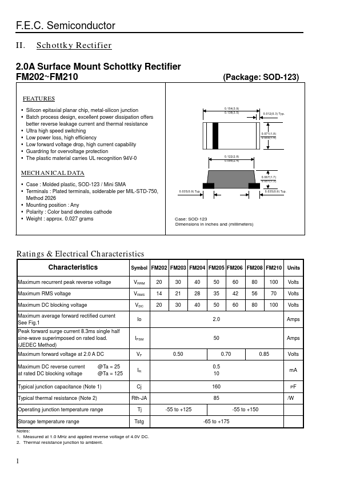

Additional preview pages of the FM204 datasheet.

Silicon epitaxial planar chip, metal-silicon junction Batch process design, excellent power dissipation offers better reverse leakage current and thermal resistance Ultra high speed switching Low power loss, high efficiency Low forward voltage drop, high current capability Guardring for overvoltage protection The plastic material carries UL recognition 94V-0.
