2WN2600001 Datasheet (FAITH LONG CRYSTAL)

2WN2600001, VC-TCXO

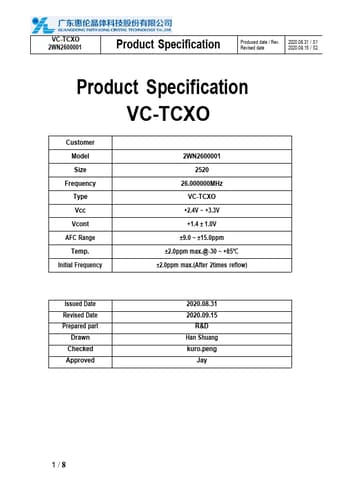

VC-TCXO 2WN2600001 Product Specification Produced date / Rev.

2020.08.31 / S1 Revised date 2020.09.15 / S2 Product Specification VC-TCXO Customer Model Size Frequency Type Vcc Vcont AFC Range Temp.

Initial Frequency 2WN2600001 2520 26.000000MHz VC-TCXO +2.4V ~ +3.3V +1.4 ± 1.0V ±9.0 ~ ±15.0ppm ±2.0ppm max.@-30 ~ +85℃ ±2.0ppm max.(After 2times reflow) Issued Date Revised Date Prepared part Drawn Checked Approved 2020.08.31 2020.09.15 R&D Han Shuang kuro.peng Jay 1/8 VC-TCXO 2WN2600001
