1N6274A - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes

Download the 1N6274A datasheet PDF (1N6267 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1500w unidirectional and bidirectional transient voltage suppressor diodes.

Features

  • • Glass passivated chip junction • Hyperectifier structure for high reliability • Cavity-free glass-passivated junction • 1500 W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle): 0.01 % • Excellent clamping capability • Very fast response time • Low incremental surge resistance • Available in uni-directional and bi-directional • Solder dip 260ºC, 10s • AEC-Q101 qualified • Component in accordance to RoHS 2011/65/EU and WEEE 2002/96/EC • Meets MSL level 1, per.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6267-FAGOR.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N6274A
Manufacturer FAGOR
File Size 524.15 KB
Description 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
Datasheet download datasheet 1N6274A Datasheet

📁 Similar Datasheet

  • 1N6274A - TRANSIENT VOLTAGE SUPPRESSOR (DC COMPONENTS)
  • 1N6274A - 1500W Transient Voltage Suppressor (Comchip Technology)
  • 1N6274A - TRANSIENT VOLTAGE SUPPRESSOR (EIC discrete Semiconductors)
  • 1N6274A - 1500 Watt MosorbE Zener Transient Voltage Transient Voltage (ON Semiconductor)
  • 1N6274A - TVS Diodes (Littelfuse)
  • 1N6274A - TVS (Vishay)
  • 1N6274A - Transient Voltage Suppressor Diodes (Taiwan Semiconductor)
  • 1N6274A - TRANSIENT VOLTAGE SUPPRESSOR (SynSemi)
  • 1N6274A - Unidirectional & Bidirectional Transient Voltage Suppressors (Microsemi)
  • 1N6274A - 1500W Transient Voltage Suppressor (TAITRON)
Other Datasheets by FAGOR
  • 1N6274 - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
  • 1N6274CA - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
  • 1N6270 - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
  • 1N6270A - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
  • 1N6270CA - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
  • 1N6271 - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
  • 1N6271A - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes
  • 1N6271CA - 1500W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes

Full PDF Text Transcription

Click to expand full text

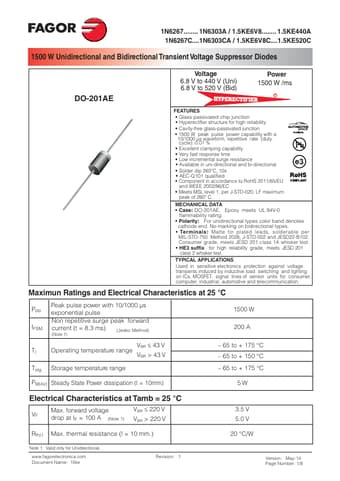

1N6267........ 1N6303A / 1.5KE6V8........ 1.5KE440A 1N6267C....1N6303CA / 1.5KE6V8C....1.5KE520C 1500 W Unidirectional and Bidirectional Transient Voltage Suppressor Diodes DO-201AE Voltage 6.8 V to 440 V (Uni) 6.8 V to 520 V (Bid) Power 1500 W /ms R FEATURES • Glass passivated chip junction • Hyperectifier structure for high reliability • Cavity-free glass-passivated junction • 1500 W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle): 0.
