EP94Z3K, EP94Z3 - HDMI 1.4 Repeater

EP94Z3K Datasheet Preview — This datasheet PDF includes multiple part numbers: EP94Z3K, EP94Z3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	EP94Z3K, EP94Z3
Manufacturer	Explore
File Size	217.24 KB
Description	HDMI 1.4 Repeater
Datasheet	EP94Z3-Explore.pdf
Note	This datasheet PDF includes multiple part numbers: EP94Z3K, EP94Z3. Please refer to the document for exact specifications by model.

EP94Z3K Product details

Description

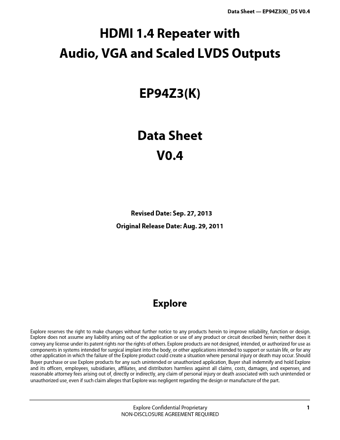

of Changes Initial Version Revise the Electrical Characteristics; Add the optional part number EP94Z3K Revised the MHL version to 2.0; Remove the typo, EXT_RES.2 Explore Confidential Proprietary NON-DISCLOSURE AGREEMENT REQUIRED Data Sheet EP94Z3(K)_DS V0.4 Section 1 Introduction 1.1 Overview EP94Z3(K) is an HDMI 1.4 Repeater with Audio, VGA and Scaled LVDS outputs.The chip supports 1 HDMI/MHL RX port and 1 HDMI TX port with repeater function.The chip also supports decoded Audio,

Features

On-chip HDMI/MHL Receiver which is compliant with HDMI 1.4b and MHL 2.0 specification.
On-chip HDMI Transmitter core which is compliant with HDMI 1.4b specification.
On-chip HDCP RX/TX Engine which is compliant with HDCP 1.4 specification.
On-chip Video Up/Down Scaler.
On-chip LVDS Transmitter supporting up to 150 Mhz pixel rate.
On-chip DAC supporting up to 150 Mhz pixel rate for VGA output port.
On-chip EDID RAM.
On-Chip.
