EMB50P03JS - Single P-Channel Logic Level Enhancement Mode Field Effect Transistor

Description

P-CH BVDSS -30V RDSON (MAX.)@VGS=-10V RDSON (MAX.)@VGS=-4.5V ID @TA=25℃ 50mΩ 85mΩ -4.0A Single P Channel MOSFET Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltag

📥 Download Datasheet

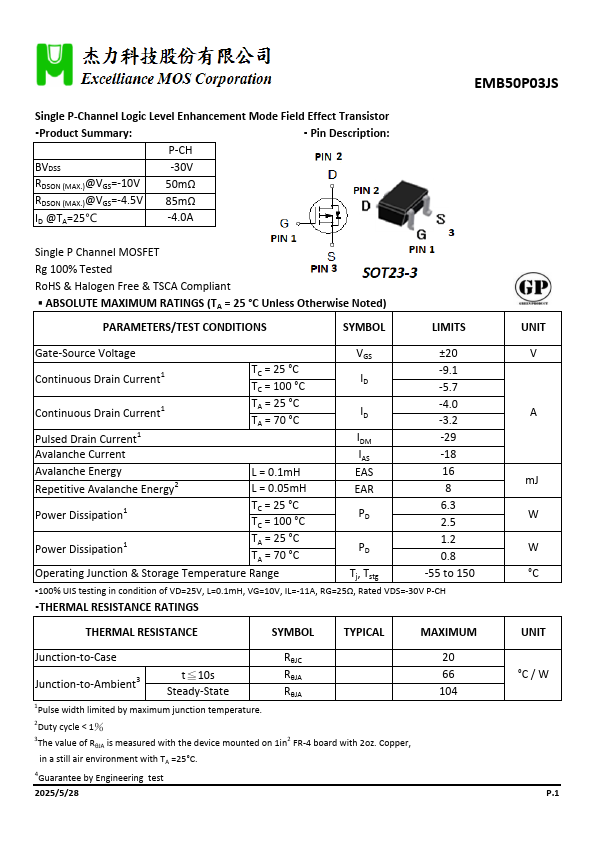

Datasheet preview – EMB50P03JS

Datasheet Details

Part number EMB50P03JS
Manufacturer Excelliance MOS
File Size 323.23 KB
Description Single P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet EMB50P03JS Datasheet

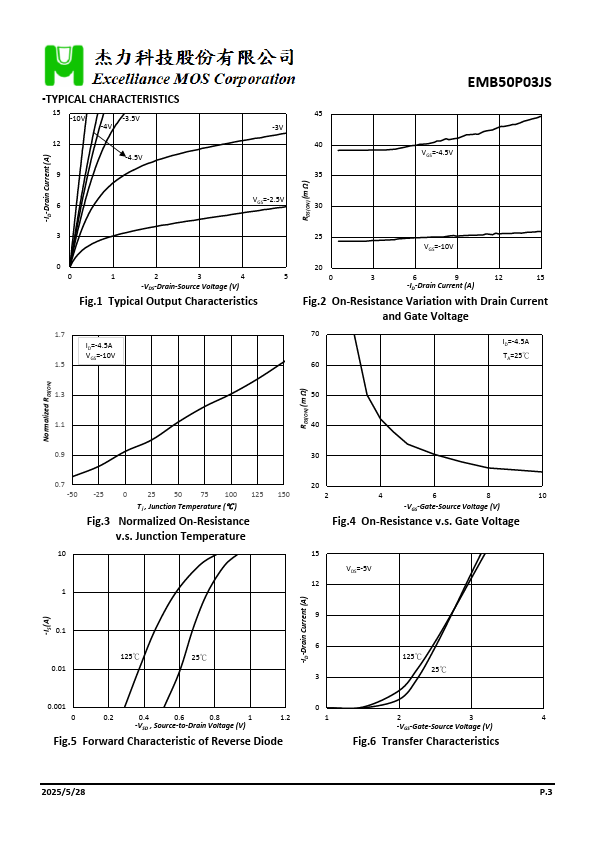

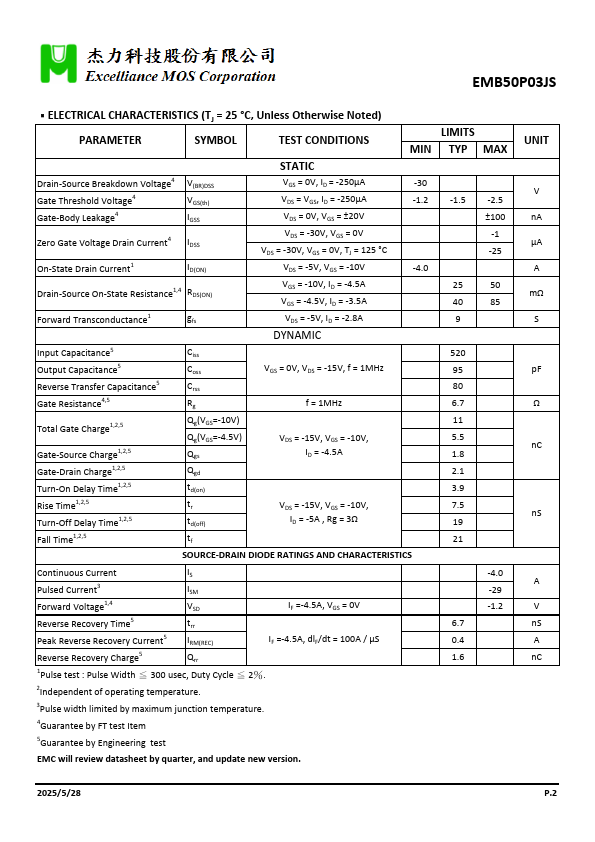

Additional preview pages of the EMB50P03JS datasheet.

📁 Similar Datasheet

  • EMB51 - Complex Digital Transistors (ROHM)
  • EMB53 - Complex Digital Transistors (ROHM)
  • EMB59 - Complex Digital Transistors (ROHM)
  • EMB09P03A - P-Channel 30V MOSFET (VBsemi)
  • EMB10 - PNP Digital Transistors (Rohm)
  • EMB10FHA - PNP -100mA -50V Complex Digital Transistors (ROHM)
  • EMB11 - Dual Digital Transistors (Rohm)
  • EMB11 - Dual Digital Transistors (JCET)
  • EMB1412 - EMB1412 MOSFET Gate Driver (Rev. B) (ETCTI)
  • EMB1428Q - EMB1428Q Switch Matrix Gate Driver (Rev. A) (ETCTI)
Other Datasheets by Excelliance MOS

Full PDF Text Transcription

Click to expand full text
EMB50P03JS Single P-Channel Logic Level Enhancement Mode Field Effect Transistor ▪Product Summary: ▪ Pin Description: P-CH BVDSS -30V RDSON (MAX.)@VGS=-10V RDSON (MAX.)@VGS=-4.5V ID @TA=25℃ 50mΩ 85mΩ -4.0A Single P Channel MOSFET Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ▪ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage Continuous Drain Current1 Continuous Drain Current1 Pulsed Drain Current1 TC = 25 °C TC = 100 °C TA = 25 °C TA = 70 °C Avalanche Current Avalanche Energy Repetitive Avalanche Energy2 L = 0.1mH L = 0.
