EM8565A - PWM Converter

Description

EM8565A is a high performance, low cost, HV Start-up, current mode PWM controller with green mode power saving.

The EM8565A integrates functions of Soft Start (SS), Under Voltage Lockout (UVLO), Leading Edge Blanking (LEB), internal Over Temperature Protection (OTP), and internal slope compensation.

Features

  • more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. The EM8565A also has line under-voltage protection (Brown-out Protection). Features 650V High Voltage Start up Circuit Current Mode Control Soft Start Function Built-in Slope Compensation Internal Leading-edge Blanking Brown in/out Protection Over Voltage Protection (OVP) on VCC pin Over Load Protection (OLP) Cycle-by-cycle Current Limit Feedback Open P.

📥 Download Datasheet

Datasheet Details

Part number EM8565A
Manufacturer Excelliance MOS
File Size 312.62 KB
Description PWM Converter
Datasheet download datasheet EM8565A Datasheet

📁 Similar Datasheet

  • EM85 - Tube (Lorenz)
  • EM85 - Tuning Indicator (VALVES)
  • EM8500 - POWER MANAGEMENT CONTROLLER (EM Microelectronic)
  • EM85000 - APPLE DESKTOP BUS MOUSE CONTROLLER (ELAN Microelectronics Corp)
  • EM8504 - POWER MANAGEMENT CONTROLLER (EM Microelectronic)
  • EM8510 - Digital Media Processors (Sigma)
  • EM85F682A - USB Microcontroller (ELAN Microelectronics)
  • EM85F684A - USB Microcontroller (ELAN Microelectronics)
  • EM80 - Tube (ETC)
  • EM80 - Tuning Indicator (Philips)
Other Datasheets by Excelliance MOS

Full PDF Text Transcription

Click to expand full text

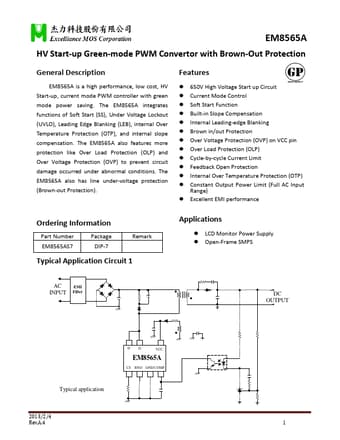

EM8565A HV Start-up Green-mode PWM Convertor with Brown-Out Protection General Description EM8565A is a high performance, low cost, HV Start-up, current mode PWM controller with green mode power saving. The EM8565A integrates functions of Soft Start (SS), Under Voltage Lockout (UVLO), Leading Edge Blanking (LEB), internal Over Temperature Protection (OTP), and internal slope compensation. The EM8565A also features more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. The EM8565A also has line under-voltage protection (Brown-out Protection).
