ES29LV400D - Boot Sector Flash Memory

Description

The ES29LV400 is a 4 megabit, 3.0 volt-only flash memory device, organized as 512K x 8 bits (Byte mode) or 256K x 16 bits (Word mode) which is configurable by BYTE#.

Features

  • Single power supply operation - 2.7V -3.6V for read, program and erase operations.
  • Minimum 100,000 program/erase cycles per sector.
  • 20 Year data retention at 125oC.

📥 Download Datasheet

Datasheet preview – ES29LV400D

Datasheet Details

Part number ES29LV400D
Manufacturer Excel Semiconductor
File Size 750.28 KB
Description Boot Sector Flash Memory
Datasheet download datasheet ES29LV400D Datasheet
Additional preview pages of the ES29LV400D datasheet.

📁 Similar Datasheet

  • ES211 - 2 Phase DC Motor Drive IC (Innosen Technology)
  • ES2320-7R - 100 Watt DC-DC Converters (Power-One)
  • ES250M - Power Amplifying Valve (EDISWAN)
  • ES250M - Power Amplifier Triode (EDISON)
  • ES2540-7R - 100 Watt DC-DC Converters (Power-One)
  • ES2660-7R - 100 Watt DC-DC Converters (Power-One)
  • ES2A - 2.0 Ampere Superfast Rectifiers (Fairchild Semiconductor)
  • ES2A - 2.0A SURFACE MOUNT SUPER-FAST RECTIFIER (Diodes Incorporated)
  • ES2A - 2 Amp Super Fast Recovery Silicon Rectifier (Micro Commercial Components)
  • ES2A - 2A SURFACE MOUNT FAST EFFICIENT RECOVERY RECTIFIERS (Frontier Electronics)
Other Datasheets by Excel Semiconductor

Full PDF Text Transcription

Click to expand full text

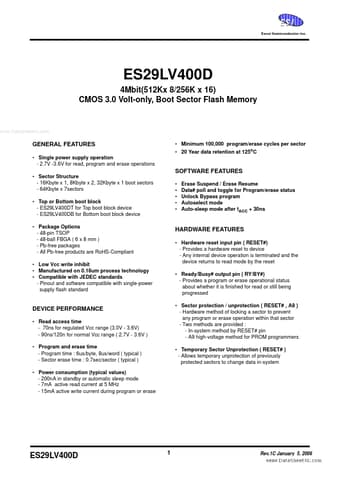

E ES S II Excel Semiconductor inc. ES29LV400D 4Mbit(512Kx 8/256K x 16) CMOS 3.0 Volt-only, Boot Sector Flash Memory www.DataSheet4U.com GENERAL FEATURES • Single power supply operation - 2.7V -3.6V for read, program and erase operations • Minimum 100,000 program/erase cycles per sector • 20 Year data retention at 125oC SOFTWARE FEATURES • Sector Structure - 16Kbyte x 1, 8Kbyte x 2, 32Kbyte x 1 boot sectors - 64Kbyte x 7sectors • Top or Bottom boot block - ES29LV400DT for Top boot block device - ES29LV400DB for Bottom boot block device • Package Options - 48-pin TSOP - 48-ball FBGA ( 6 x 8 mm ) - Pb-free packages - All Pb-free products are RoHS-Compliant • Low Vcc write inhibit • Manufactured on 0.
