XR-5532A - Dual Low-Noise Operational Amplifier

Product Overview

Exar

Datasheet Details

Part number	XR-5532A
Manufacturer	Exar
File Size	134.50 KB
Description	Dual Low-Noise Operational Amplifier
Datasheet	XR-5532A Datasheet
Note	This datasheet PDF includes multiple part numbers: XR-5532A, XR-5532. Please refer to the document for exact specifications by model.
Additional preview pages of the XR-5532A datasheet.

Product details

Description

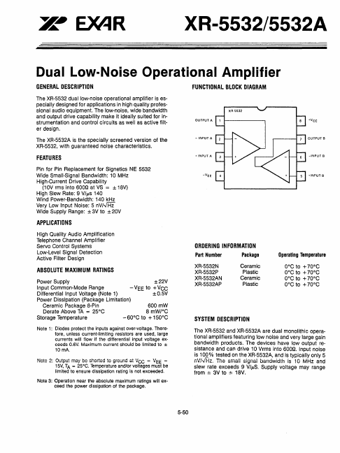

FUNCTIONAL BLOCK DIAGRAM The XR-5532 dual low-noise operational amplifier is especially designed for applications in high quality professional audio equipment.The low-noise, wide bandwidth and output drive capability make it ideally suited for instrumentation and control circuits as well as active filter design.XR 5532 The XR-5532A is the specially screened version of the XR-5532, with guaranteed noise characteristics.

Features

Pin for Pin Replacement for Signetics NE 5532 Wide Small-Signal Bandwidth: 10 MHz High-Current Drive Capability (10V rms into soon at VS = ± 1aV) High Slew Rate: 9 V/p. s 140 Wind Power-Bandwidth: 140 kHz Very Low Input Noise: 5 nV/. JFfZ Wide Supply Range: ± 3V to ± 20V.
