XR-1005, XR-1000 - General Purpose Low Pass Filter

Name: XR-1005
SKU: XR-1005-1257551

Exar

The XR-1005 by Exar is a General Purpose Low Pass Filter. Below is the official datasheet preview.

Datasheet Details

Part number	XR-1005, XR-1000
Manufacturer	Exar
File Size	125.13 KB
Description	General Purpose Low Pass Filter
Datasheet	XR-1000-Exar.pdf
Note	This datasheet PDF includes multiple part numbers: XR-1005, XR-1000. Please refer to the document for exact specifications by model.

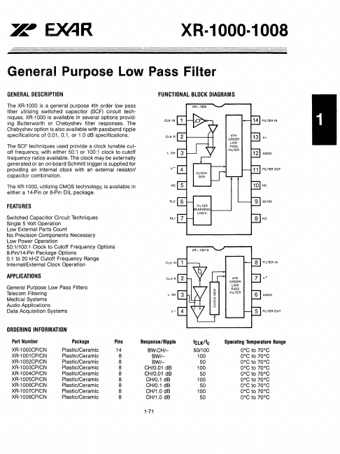

Additional preview pages of the XR-1005 datasheet.

The XR-1000 is a general purpose 4th order low pass filter utilizing switched capacitor (SCF) circuit techniques.

Switched Capacitor Circuit Techniques Single 5 Volt Operation Low External Parts Count No Precision Components Necessary Low Power Operation 50:1/100:1 Clock to Cutoff Frequency Options 8-Pin/14-Pin Packag.
