XRT5997 - Seven-Channel E1 Line Interface Unit

Description

The XRT5997 is an optimized seven-channel analog E1 line interface unit fabricated using low power 3.3V CMOS technology.

Each channel consists of both a Transmitter and a Receiver function.

Features

  • The Main features are as follows: l Consists of Seven (7) Independent E1 (CEPT) Line Interface Units (Transmitter and Receiver) l Generates Transmit Output Pulses that are Compliant with the ITU-T G.703 Pulse Template Requirement for 2.048Mbps (E1) Rates l On-Chip Pulse Shaping for both 75Ω and 120Ω line drivers l Receiver Can Either Be Transformer or Capacitive-Coupled to the Line l Detects and Clears LOS (Loss of Signal) Per ITU-T G.775 l Compliant with the ITU-T G.823 Jitter Tolerance Require.

📥 Download Datasheet

📁 Similar Datasheet

  • XRT5990 - Single Chip Pulse / Tone Dialer (Exar)
  • XRT71D03 - 3 CHANNEL E3/DS3/STS-1 JITTER ATTENUATOR (Exar)
  • XRT7296 - INTEGRATED LINE TRANSMITTER (Exar)
  • XRT72L13 - M13 MULTIPLEXER/CLEAR CHANNEL DS3 FRAMER IC (ETC)
  • XRT72L52 - TWO CHANNEL DS3/E3 FRAMER IC (Exar)
  • XRT72L54 - FOUR CHANNEL DS3/E3 FRAMER IC (Exar)
  • XRT72L56 - SIX CHANNEL DS3/E3 FRAMER IC (Exar)
  • XRT75R12 - Twelve Channel Line Interface (MaxLinear)
  • XRT81L27 - SEVEN CHANNEL E1 LINE INTERFACE UNIT (Exar)
  • XRT83VSH316 - 16-CHANNEL T1/E1/J1 SHORT-HAUL LINE INTERFACE UNIT (MaxLinear)
Other Datasheets by Exar Corporation
  • XRT59L91 - Single-Chip E1 Line Interface Unit
  • XRT59L921 - TWENTY-ONE CHANNEL E1 LINE INTERFACE UNIT
  • XRT5683A - PCM Line Interface Chip
  • XRT56L22 - Low Power Repeater/Receiver
  • XRT56L85 - Low Power PCM Line Interface
  • XRT5894 - Four-Channel E1 Line Interface
  • XRT5897 - Seven-Channel E1 Line Interface
  • XRT-6164 - Digital Line Interface Transceiver

Full PDF Text Transcription

Click to expand full text

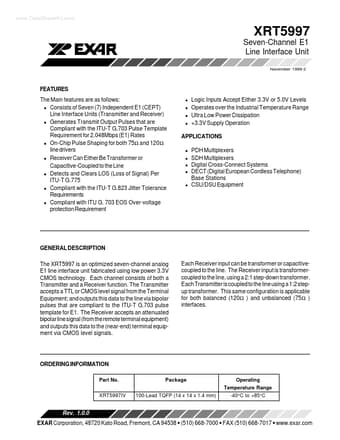

www.DataSheet4U.com XRT5997 Seven-Channel E1 Line Interface Unit November 1999-2 FEATURES The Main features are as follows: l Consists of Seven (7) Independent E1 (CEPT) Line Interface Units (Transmitter and Receiver) l Generates Transmit Output Pulses that are Compliant with the ITU-T G.703 Pulse Template Requirement for 2.048Mbps (E1) Rates l On-Chip Pulse Shaping for both 75Ω and 120Ω line drivers l Receiver Can Either Be Transformer or Capacitive-Coupled to the Line l Detects and Clears LOS (Loss of Signal) Per ITU-T G.775 l Compliant with the ITU-T G.823 Jitter Tolerance Requirements l Compliant with ITU G. 703 EOS Over-voltage protection Requirement l l l l Logic Inputs Accept Either 3.3V or 5.0V Levels Operates over the Industrial Temperature Range Ultra Low Power Dissipation +3.
