XRD98L63 - CCD Image Digitizers with CDS/ PGA and 12-Bit A/D

Exar Corporation

Datasheet Details

Part number	XRD98L63
Manufacturer	Exar Corporation
File Size	616.38 KB
Description	CCD Image Digitizers with CDS/ PGA and 12-Bit A/D

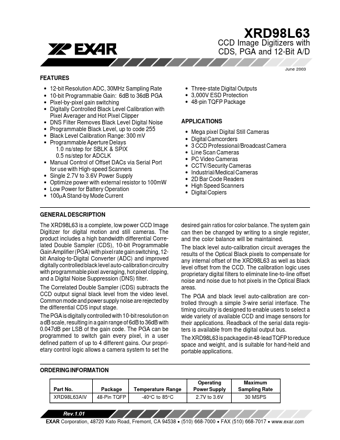

Datasheet	XRD98L63_ExarCorporation.pdf

The XRD98L63 is a complete, low power CCD Image Digitizer for digital motion and still cameras.

12-bit Resolution ADC, 30MHz Sampling Rate 10-bit Programmable Gain: 6dB to 36dB PGA Pixel-by-pixel gain switching Digitally Controlled Black Level Calibration with Pixel Averager and Hot Pixel Clipper DNS Filter Removes Black Level Digital Noise Programmable Black Level, up to code 255 Black Level Calibration Range: 300 mV Programmable Aperture Delays 1.0 ns/step for.
